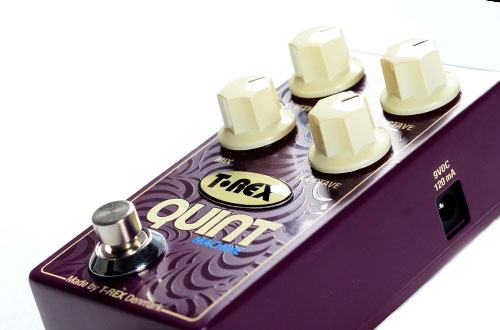

T-Rex Effects Quint Machine - Four Tone Generator - Effect Pedal

Replicate almost any sound you can think of with the T-Rex Effects Quint Machine Four Tone Generator. Mix and match the octave knobs to turn your guitar into a synth, organ, or twelve-string. Break out of your routine and turn that guitar into a new beast, or take some weight off your shoulders and a play a single note that will sound like a full chord. Every turn of one of the four knobs opens up a world of possibilities for your playing!

This pedal offers a large combination of tonal options with totally adjustable octaves, and applying the ability to modulate fifths adds a new dimension to the traditional octave pedal. With the ability to modulate four separate tones, the Quint Machine is the perfect addition beef up your pedal board.

Features:

• T-Rex Effects Quint Machine - Four Tone Generator - Effect Pedal
• Input impedance @ 1KHz Higher than 1M Ohm

• Output impedance @ 1KHz Lower than 1K Ohm
• Minimum power supply voltage 8V DC

• Maximum power supply voltage 12,5V DC

• Current draw @ 9V DC 145 mA

• Maximum input signal V p-p 3V p-p

• External connectors input jack, output jack, 9V DC jack

• Controls on/off switch, mix, +1 octave, -1 octave, +1 fifth
• 9V Power Supply Sold Separately
